  • BESS: State of the Art “Battery Energy Storage Systems” based on new material science discoveries
  • Guaranteed Power Anytime
  • Proprietary Battery Health Monitoring System
  • Real-Time Asset Operations
  • System State of Charge
  • ITC & REC Compliance
  • Carbon & Emissions Reductions
Download
Fusion X Energy STL Battery Energy Storage Systems (BESS)

STL Battery Energy Storage System which provides carbon-free clean power and enables uninterrupted silent power supply while significantly reducing costs. Equipped with a hybrid inverter, lithium ion batteries, and intelligent energy management system, the Energy Storage System has the intelligence of combining grid power, solar energy, wind power and even DG power supply and Telecom power supply.

The battery energy storage systems range starts from 4.8 KWh and meets residential, commercial and industrial needs. BESS also provides power back-up that reduces revenue loss to industries due to power cuts. It requires about 2 hrs. Of charging and can beoptionally remote monitored with encrypted data logging.

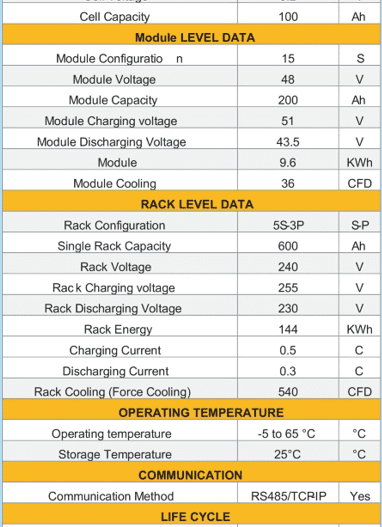

Component pecification Unit
Inverter Ratinq
30
KW
Input Vdc
240
v
Over Loadinq
±10%
%
Battery Voltaqe
240
Vdc
Caoacitv
600
Ah
Battery Operating Range
230-255
v
Operational Time
3
Hrs
Load
30
KW
Charging
0.5
c
Discharqinq
0.3
c
Battery Enerqy
144
KWh
Compatible
Solar,Wind, Grid,DG
Application
Inbuilt Solution
Containerize Solution
10x8
Feet
Inverter Rating
30
KW
Battery Bank
144
KWh
HVAC
2
Ton
Fire Suppression
Central Type Class D
----------
Liohteninq Arrestor
Coooer Bonded
-----------
HV Control Panel
With SPD &Isolator
-----------

STL Battery ESS

STL Battery Energy Storage System is an all in one (LFP) battery energy storage system (BESS). Designed around a 30 kW PCS with 144KWh battery storage options allows for easy and reliable light commercial applications.Solar, Wind, Grid, and DG compatible

Advanced & Guaranteed System

 Strong R&D team supports innovative products and continuous improvement thereafter; x Self-developed BESS controller and EMS, ensuring best reliability of the system;

Self-developed BESS controller and EMS, ensuring best reliability of the system;

Smart & Easy Operation

The 30kW PCS cabinet contains a Hybrid PCS with 180V-290V DC voltage;

System Topology

Containerize System Configuration

Money -saved & Versati le Application

2500 cycle’s battery cell
DC coupling system ensuring: higher DC/AC ratio, higher round trip efficiency;
Accessible to different sources of powers: PV, ESS, Grid or DG, supports both on-grid and off-grid modes

Reliable & Competitive Quality

Containerized with protection level at IP54 for the whole system and IP65 for the battery compartment Money-saved & Versatile Application

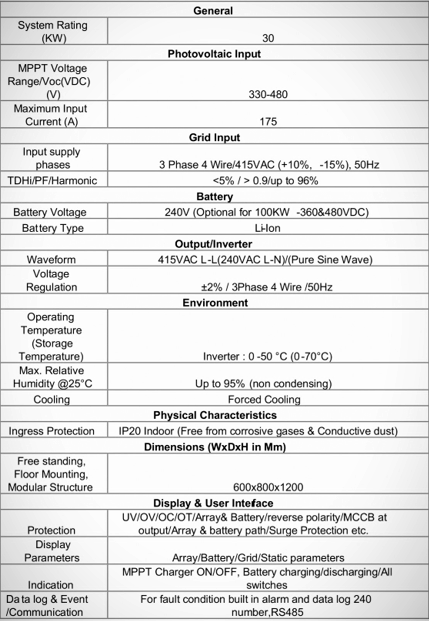

Product features

The battery string is charged from corresponding PV string and DC/DC Module during day time x operation;

Battery Energy Storage System

Power Conditioning System PCS

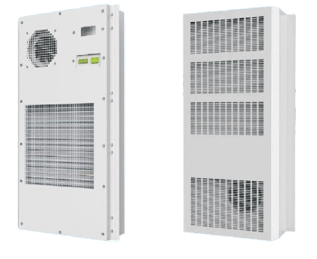

HVAC

The environmental control system inside the ESS adopts precision heating, ventilation and air conditioning designed to ensure ideal internal temperature whether discharging, charging or on standby.

The operation of the HVAC is fully automatic and responds to the internal temperature of the container. It is a highly reliable system and has a number of easy to use functions.

FIRE SUPPRESSION SYSTEM

The fire suppression system is designed according to the container size, and the fire extinguishing gas is discharged from the extinguishing gas cylinders to the main pipeline and then to branch pipelines and sprayed from nozzles.

The operation of the HVAC is fully automatic and responds to the internal temperature of the container. It is a highly reliable system and has a number of easy to use functions.
